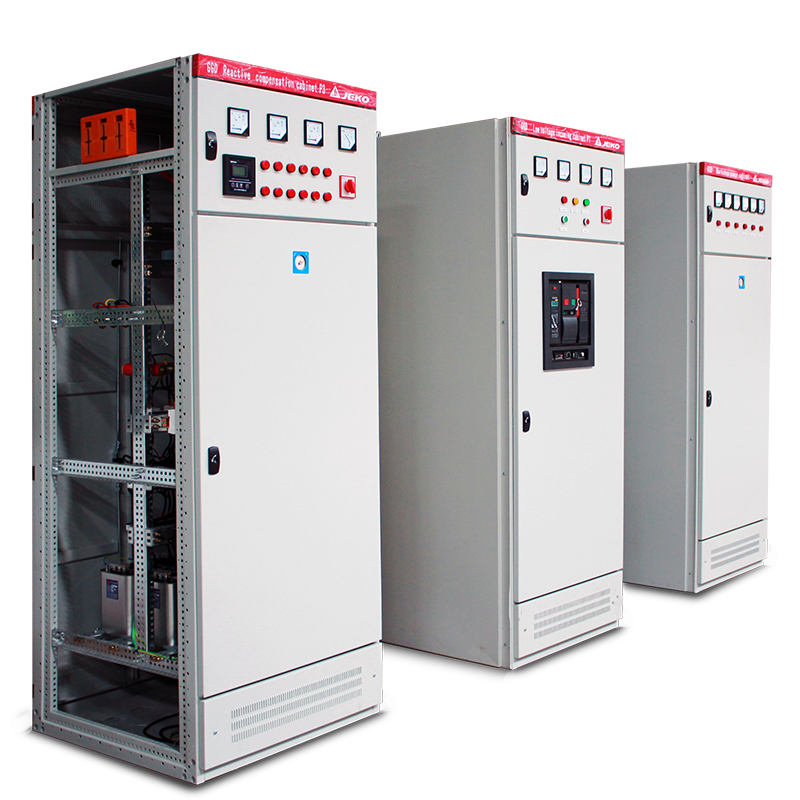

GGD Series Low Voltage Switchgear
The GGD Low Voltage Power Distribution Cabinet is a fixed-type power distribution unit designed for AC 50Hz, rated voltage 380V, and rated current up to 3150A.
Product description
Compact Power. Reliable Distribution.
The GGD Low Voltage Power Distribution Cabinet is a fixed-type power distribution unit designed for AC 50Hz, rated voltage 380V, and rated current up to 3150A. It is widely used in power plants, substations, industrial and mining enterprises to convert, distribute, and control electrical energy safely and efficiently.
Engineered for ease of installation, ventilation, and long-term reliability, the GGD cabinet reflects the evolution of traditional power panels into modern solutions that comply with IEC and GB standards.
Key Technical Specifications
- Modular Structure: Steel plate frame assembled with modular design for flexible installation and maintenance.
- High Protection Grade: IP30/IP40 protection against dust and accidental contact.
- Good Ventilation: Top and bottom air inlets/outlets designed for heat dissipation.
- Safe Operation: Includes mechanical interlock devices to ensure operator safety.
- Versatile Applications: Supports various electrical loads and protective devices (MCCB, ACB, contactors, etc.).
Key Technical Specifications
| Type | Rated voltage (V) | Rated current (A) | Rated short-circuit breaking current (kA) | Rated short-circuit withstand current (1s)(kA) | Rated peak withstand voltage (kA) |
|---|---|---|---|---|---|
| GGD1 | 380 | A 1000 | 15 | 15 | 30 |
| 380 | B 600(630) | 15 | 15 | 30 | |
| 380 | C 400 | 15 | 15 | 30 | |
| GGD2 | 380 | A 1500(1600) | 30 | 30 | 63 |
| 380 | B 1000 | 30 | 30 | 63 | |
| 380 | C 600 | 30 | 30 | 63 | |
| GGD3 | 380 | A 3150 | 50 | 50 | 105 |
| 380 | B 2500 | 50 | 50 | 105 | |
| 380 | C 2000 | 50 | 50 | 105 |
Every product by PT. Jeko Elektrindo Jaya is engineered with a commitment to quality, safety, and long-term reliability. Our technical specifications reflect global standards while being adapted to meet the real-world demands of the Indonesian power infrastructure. Discover the core features that make our solutions trusted across industries.
Main bus
- Single copper busbar adopted when the rated current<=1500A
- Double copper busbar adopted when the rated current>1600A.
Selection of Horizontal Bus
| Rated current (A) | Copper Busbar specification (mm) |
|---|---|
| 400 | 40×4 |
| 630 | 50×5 |
| 1250 | 60×10 |
| 1600 | 80×10 |
| 2000 | 2×(60×10) |
| 2500 | 2×(80×10) |
| 3150 | 2×(100×10) |
Selection of Horizontal Bus
| Cross section of phase conductor (mm²) | Cross section of PE(N) conductor (mm²) |
|---|---|
| 500~720 | 40×5 |
| 1200 | 60×6 |
| >1200 | 60×10 |
Assembly Drawing & Mounting Dimensions
Feature
- The accuracy and quality of the switchgear could be ensured as the framework parts and special parts supplied by JEKO. Modular
design of the Overall and mounting dimensions(mm) s concering(E=20mm), which has cut production time and enhanced efficiency. - The heat dispensation channel at the top and bottom of the switchgear formulate a ventilation loop to dispens the beat.
- Easy for installation and dismantling
- The switchgear with perfect earthing protection system.
- The cover of the switchgear could be removed for installation and adjustment of the main bus bar. there are also rings for lifting and delivery of switchgear
- The protection degree is IP30,As per you requirements,switchgearswith protection degree of IP20~IP40 are available.
- Flexible circuit plans are available.

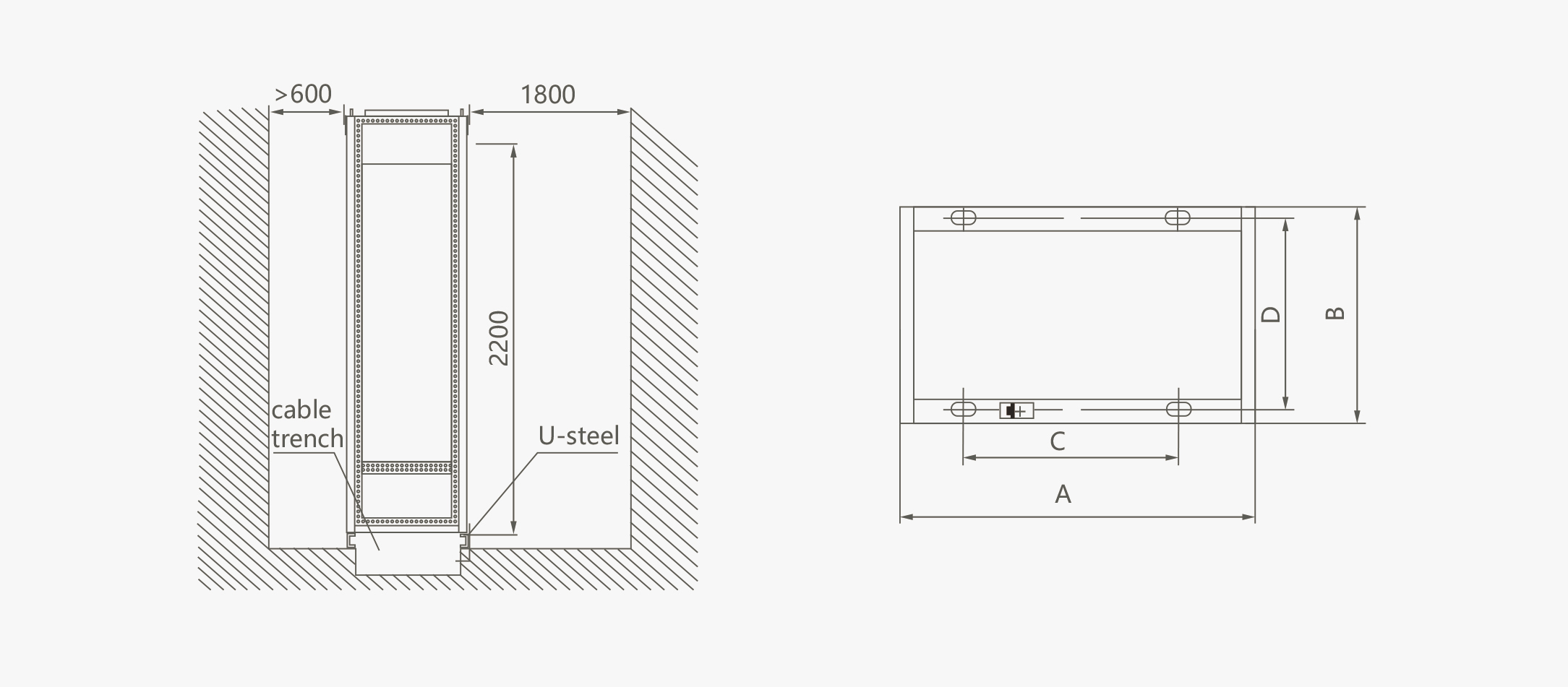

Overall and mounting dimensions(mm)
Installation Overall and mounting dimensions(mm)
| Product code | A | B |
|---|---|---|
| GGD 06 | 600 | 600 |
| GGD06A | 600 | 800 |
| GGD8 | 800 | 600 |
| GGD08A | 800 | 800 |
| GGD10 | 1000 | 600 |
| GGD10A | 1000 | 800 |
| GGD12 | 1200 | 800 |
Installation Overall and mounting dimensions(mm)
Additional information
| Weight | 300 kg |
|---|---|
| Dimensions | 100 × 75 × 160 cm |
| Mounting Type | Free-standing, floor-mounted |
| Enclosure Material | Powder-coated, corrosion-resistant steel suitable for humid climates. |
| Ambient Temperature Range | -5°C to +40°C |
| Altitude Rating | Up to 1000 meters above sea level |
| Humidity Resistance | Operates at ≤95% relative humidity |
| Panel Finish | Anti-rust coating with RAL 7035 (light grey) |
| Standart | IEC60439-1 , GB7251.1 |
| Busbar Material | Tinned or bare copper, 3-phase 4-wire system |
