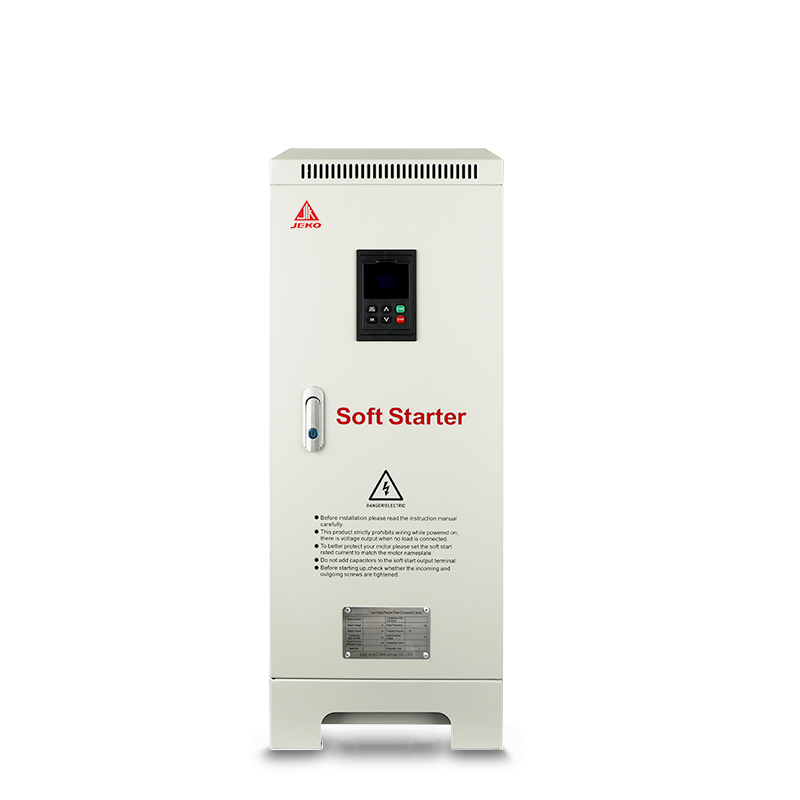

Motor Soft Start Cabinet
The JEKO Series Soft Starter Cabinet is an advanced motor control solution designed to enable the safe, smooth, and energy-efficient starting and stopping of large three-phase asynchronous motors.
Product description
Compact Power. Reliable Distribution.
The JEKO Series Soft Starter Cabinet is an advanced motor control solution designed to enable the safe, smooth, and energy-efficient starting and stopping of large three phase a synchronous motors. It is ideal for industrial systems requiring high reliability and precise motor management. The Motor Soft Start Cabinet enhances motor performance by reducing electrical and mechanical stress during startup, ensuring smooth and efficient operation for heavy duty machinery.
Key Features
- Controlled Startup: Gradual voltage increase minimizes inrush currents, protecting electrical systems.
- Extended Motor Lifespan: Reduces wear and tear, ensuring longevity and lower maintenance costs.
- Energy Efficiency: Optimizes energy consumption, aligning with our commitment to sustainable solutions.
Key Technical Specifications
| Project Name | Performance Index |
|---|---|
| Scope of application | 3 phase rat cage asynchronous motor |
| Power bracket | 5.5~450kW |
| Input voltage | 380V ±15% |
| Supply frequency | 50/60Hz ±5% |
| Overload capacity | 400% 60 sec, 120% continuous |
| Adjustable current multiple | From 1 to 5 times each time |
| Soft uptime | 1~90 Seconds |
| Module working mode | Over a long period of time |
| Cooling-down method | Forced air cooling |
| Secondary interface terminal | 3 Road |
| Relay output: 1 (programmable) or 3 (programmable) | |
| 4–20mA: Route (extension is optional) | |
| RS485: 1-way (extended as optional) | |
| Protect | Short circuit speed break, overcurrent, overheat protection, reverse time overload, voltage phase deficiency, imbalance, insinent stop, undervoltage, overvoltage, underload, starting failure, phase sequence error. |
| Host overload protection | Overload and reverse time limit, level 1–5 is optional |
| Host current imbalance protection | Unbalanced trip standard: 5–100% any two-phase; unbalanced trip delay: 1–60 seconds can be set |
| Host short circuit protection | Quick break time: 0.18, can be set |
| Bus function | Interface: RS485 protocol – Modbus RTU |
| Human-computer interface | 4 Line COG Screen |
| Language | English |
Every product by PT. Jeko Elektrindo Jaya is engineered with a commitment to quality, safety, and long-term reliability. Our technical specifications reflect global standards while being adapted to meet the real-world demands of the Indonesian power infrastructure. Discover the core features that make our solutions trusted across industries.
Advantages

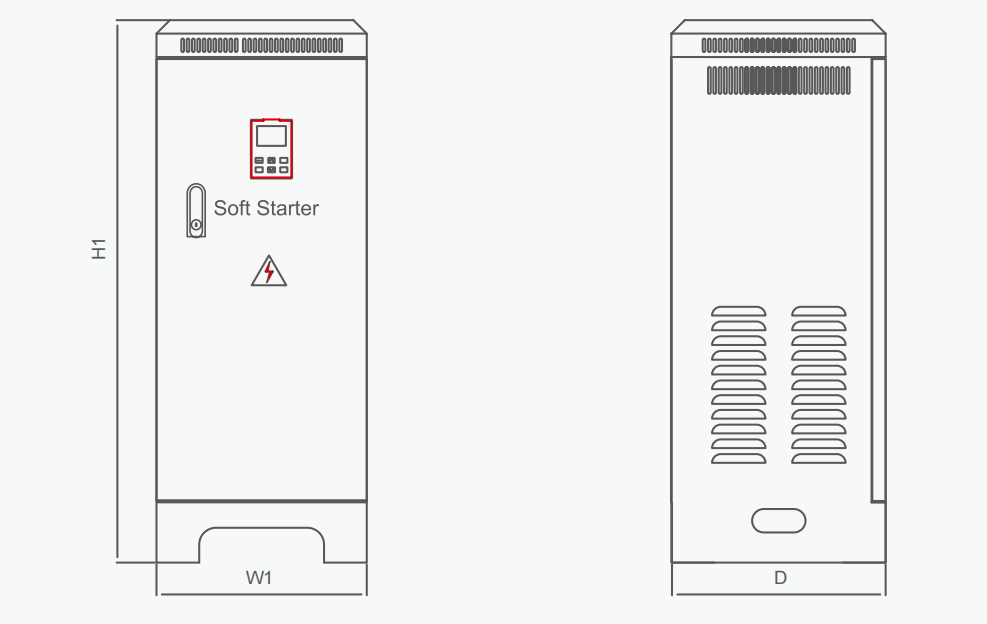

Overall and mounting dimensions(mm)
Additional information
| Weight | 800 kg |
|---|---|
| Dimensions | 100 × 75 × 220 cm |
| Mounting Type | Free-standing |
| Enclosure Material | Cold-rolled steel sheet (CRCA) with powder coating |
| Cabinet Type | Floor-standing metal enclosure, equipped with handle lock for safety |
| Cooling Method | Forced air cooling with top ventilation |
| Color Finish | RAL7035 standard light gray powder coating |
| Front Panel Display | Displays operational status, faults, voltage, and current readings |
| Front Access | User-friendly door with a visible warning label and control keypad |
